29.56 MHz W5DFW Repeater RX (old site/old equipment) Fort Worth tower pictures taken March 2002

  1. A rats nest of coax coming out of the radio building!

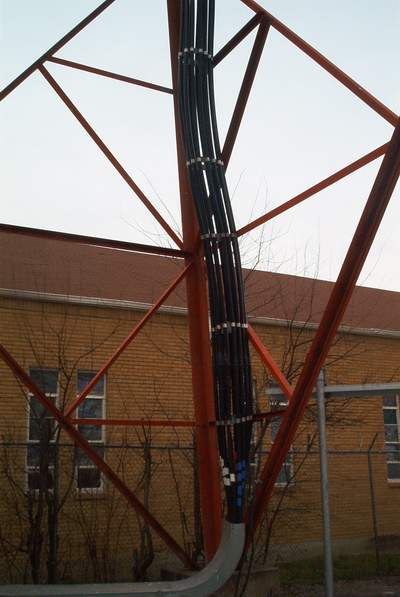

  2. Heliax going up one leg of the tower

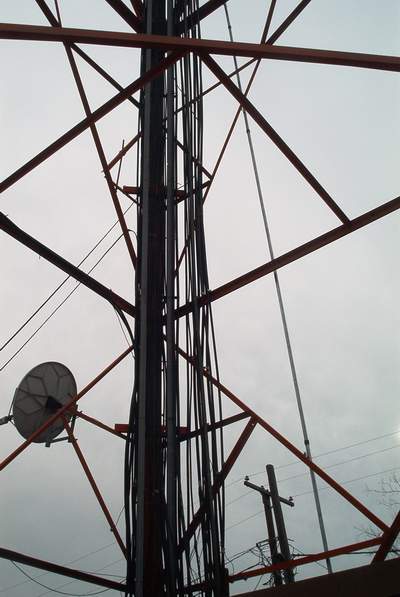

  3. More Heliax going up another leg of the tower

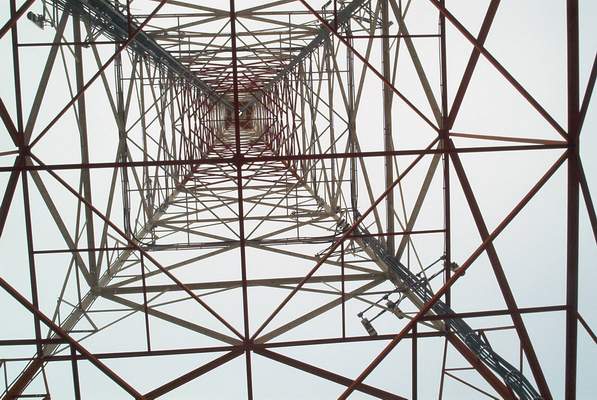

  4. Looking up from underneath the tower

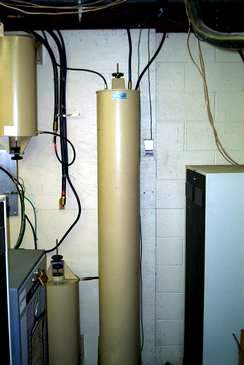

  5. A very big cavity on the 29.56 MHz W5DFW repeater receiver (it's over 7 feet tall!)

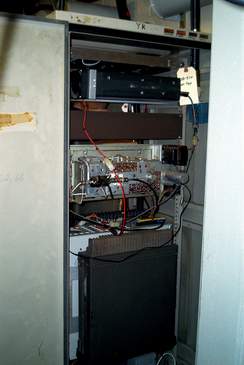

  6. The back of the cabinet with the 29.56 RX

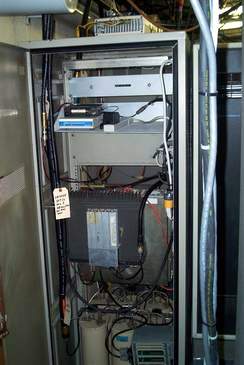

  7. The front of the same cabinet
